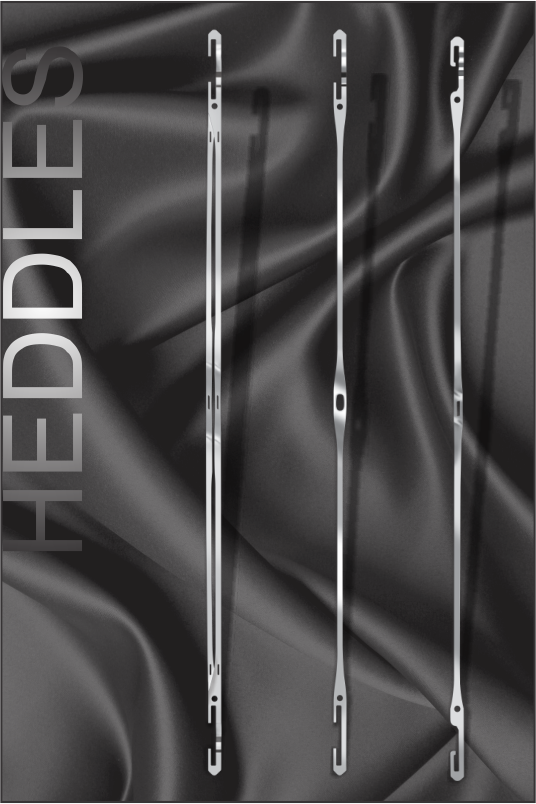

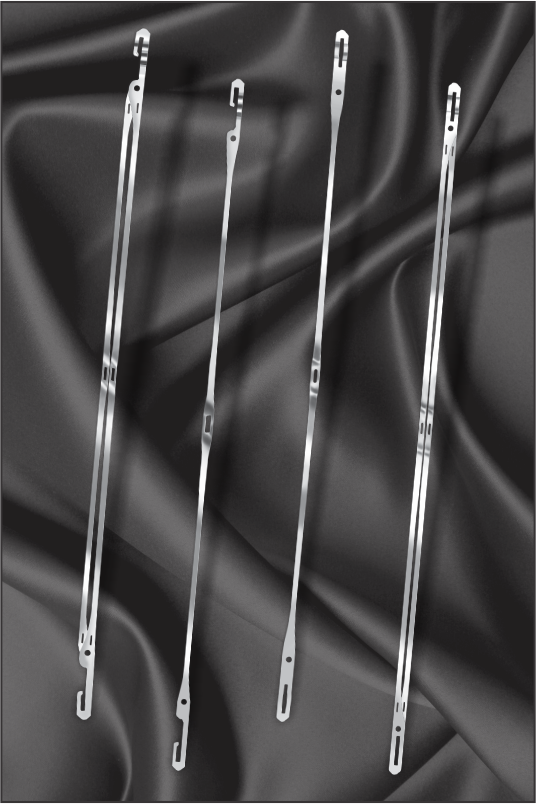

Heddles
"C" & "J" Type
RIDERLESS HEDDLES
SIMPLEX
| Length | THICKNESS | Eye Size |
| 280 mm 331 mm 356 mm 282 mm |
0.25 mm 0.30 mm 0.38 mm |
5.5 X 1.2 mm |
| 6.5 X 1.8 mm | ||
| 6.5 X 2.5 mm | ||
| 7.8 X 3.8 mm | ||
| 8.0 X 2.5 mm | ||
| 8.0 X 3.8 mm | ||
| 8.4 X 3.4 mm | ||
| 8.4 X 3.8 mm |
- Placed in Centre
- 5 mm Above Centre
- 10 mm Above Centre
DUPLEX
| Length | Thickness | Eye Size |
| 280 mm 331 mm 356 mm 282 mm |
0.25 mm 0.30 mm 0.38 mm |
5.5 X 1.2 mm 6.5 X 1.8 mm |
Execution
High Carbon Steel Strips- Stainless Steel (Inox)
- Electro Nickel Plated
FLAT STEEL HEDDLES WITH REINFORCED END LOOPS- 'O' TYPE
Designed specially for high speed looms. it is ideal for avoiding breakage of Heddles & increasing the weaving efficiency.Endloops neither bend nor break,therefore Heddles do not get unhooked from the carrying rods.It can be used on light carrying rods - cross section 9.0 X 1.5mm.SIMPLEX & DUPLEX
| Length | Thickness | Eye Size |
| 260 mm 280 mm 302 mm 330 mm |
0.30 mm 0.25 mm |
5.5 X 1.2 mm |
Product Information
High quality stainless steel (INOX) for resistance to wear and breakage.
Our stainless steel materials meet international standards for materials properties in chemical content and physical characteristics. This combination of proper chemicals and strong physical condition enables our heddles to stand up to high speeds, while providing resistance to cutting from yarn contact during weaving operations
Precision stamping for dimensional accuracy and consistency from lot-to-lot.
Newly developed heddle stamping lines provide precision heddle products that assure smooth drawing-in and consistent high performance in weaving operations.
High capacity manufacturing for large quantity orders and quick delivery.
High speed, streamlined manufacturing enables production of large quantities of heddles required for large weaving operations around the world.
New generation finishing process to assure smooth edge and yarn eyes for delicate yarns.
Yarns of all types require heddles that are extremely smooth on all surfaces that contact the yarns. UTA puts special emphasis on assuring highly smooth heddles suitable for your delicate yarns.
Heddles suitable for all types of automatic drawing-in machines
Efficient drawing-in is vital for the large weaving operations around the world. UTA’s precision made heddles are constructed to perform well on all types of automatic drawing-in machines, providing customers the reliability needed for efficient drawing-to-weaving processes.
